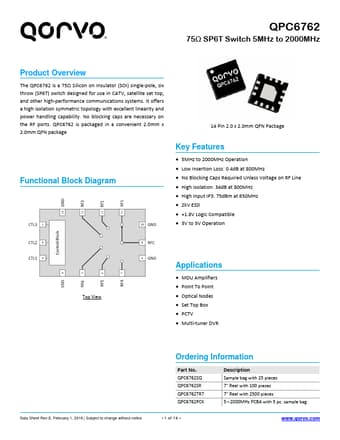

QPC6762 Datasheet, Switch, Qorvo

QPC6762 Features

• Switch
• 5MHz to 2000MHz Operation
• Low Insertion Loss: 0.4dB at 800MHz
• No Blocking Caps Required Unless Voltage on RF Line
• High Isolation: 34dB at 800MHz

PDF File Details

Part number:

QPC6762

Manufacturer:

Qorvo

File Size:

1.66MB

Download:

📄 Datasheet

Description:

5mhz to 2000mhz sp6t switch.

QPC6762 Application

• Applications
• MDU Amplifiers
• Point To Point
• Optical Nodes
• Set Top Box
• PCTV
• Multi-tuner DV

TAGS

QPC6762

Qorvo
