QPX0002

I/Q Mixer

QPX0002 Features

* I, Q outputs

* RF, LO Frequency Range: 2.5

* 15 GHz

* IF Frequency Range: DC

* 1 GHz

* Low conversion loss of 8 dB at 8 GHz

* High image rejection of 22 dB

* High LO/RF isolation > 50 dB at 8 GHz

* Wide operating bandwidth

QPX0002 General Description

100 pcs on 7” reel Evaluation Board Data Sheet | July 2, 2021 | Subject to change without notice 1 of 14 www.qorvo.com ® Absolute Maximum Ratings Parameter Rating LO, RF, or IF power, CW, 25 °C +25 dBm Channel Temperate, Tch 150 °C Operating Temperature -40 to 85 °C Storage Temperature.

QPX0002 Datasheet (418.82 KB)

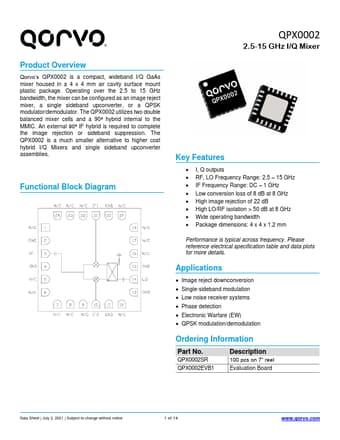

Preview of QPX0002 PDF

Datasheet Details

Part number:

QPX0002

Manufacturer:

Qorvo

File Size:

418.82 KB

Description:

I/q mixer.
® Product Overview Qorvo’s QPX0002 is a compact, wideband I/Q GaAs mixer housed in a 4 x 4 mm air cavity surface mount plastic package. Operating over.
