QPX0003D

I/Q Mixer

QPX0003D Features

* I, Q outputs/inputs

* RF, LO Frequency Range: 30 to 40 GHz

* IF Frequency Range: DC

* 5 GHz

* Low conversion loss of 7 dB at 35 GHz

* High image rejection of 25 dB

* High LO/RF isolation > 35 dB at 35 GHz

* Small die size Performance

QPX0003D General Description

30 to 40 GHz I/Q mixer die Sample, 2 pieces Data Sheet Rev B. December 18, 2020 | Subject to change without notice 1 of 12 www.qorvo.com ® Absolute Maximum Ratings Parameter Rating LO, RF, or IF power, CW, 25 ⁰C +25 dBm Channel Temperate, Tch 150 °C Operating Temperature -55 to 85 °C S.

QPX0003D Datasheet (341.02 KB)

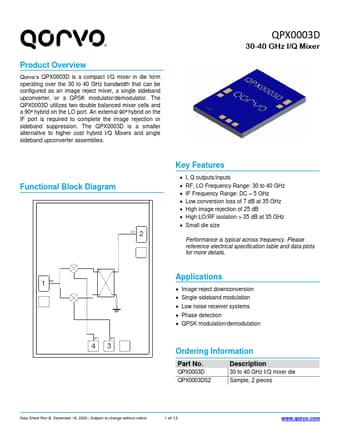

Preview of QPX0003D PDF

Datasheet Details

Part number:

QPX0003D

Manufacturer:

Qorvo

File Size:

341.02 KB

Description:

I/q mixer.
® Product Overview Qorvo’s QPX0003D is a compact I/Q mixer in die form operating over the 30 to 40 GHz bandwidth that can be configured as an image re.
