QD14TL01 - TFT LCD

Quanta

📥 Download Datasheet

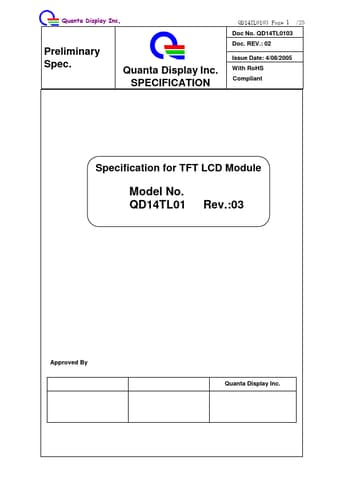

QD14TL01 Datasheet Preview — Preview of QD14TL01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: QD14TL01
Manufacturer: Quanta
File Size: 868.90 KB
Datasheet: QD14TL01_Quanta.pdf
Description: TFT LCD

QD14TL01 Product details

Features

1) High aperture ratio, high-brightness. 2) Brilliant and high contrast image. 3) Small footprint and thin shape. 4) WXGA resolution (800 vertical by 1280 horizontal pixel array). 5) LVDS interface. 6) Low power consumption. 7) RoHS compliant www. DataSheet. co. kr 3. General Specifications Parameter Display size Active area Pixel format Pixel pitch Pixel configuration Display mode Unit outline dimensions (typ. ).
1 Mass Surface treatment Specifications 14.1” Diagonal 303.7 (H)×189.8 (V) 1280 (.
