QN8007B - High Performance Digital FM Transmitter

Product Overview

Quintic

Datasheet Details

Part number	QN8007B
Manufacturer	Quintic
File Size	1.14 MB
Description	High Performance Digital FM Transmitter
Datasheet	QN8007B Datasheet

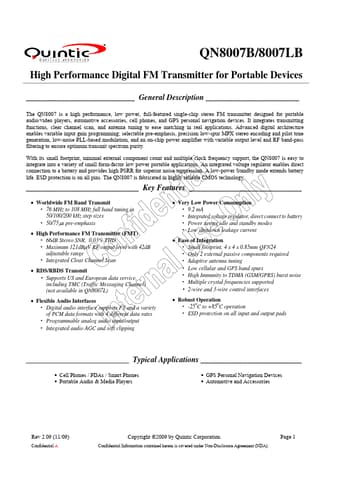

Additional preview pages of the QN8007B datasheet.

Product details

Description

________________________ The QN8007 is a high performance, low power, full-featured single-chip stereo FM transmitter designed for portable audio/video players, automotive accessories, cell phones, and GPS personal navigation devices.It integrates transmitting functions, clear channel scan, and antenna tuning to ease matching in real applications.Advanced digital architecture enables variable input gain programming; selectable pre-emphasis, precision low-spur MPX stereo encoding and pilot ton

Features

_____________________________.
Worldwide FM Band Transmit.
76 MHz to 108 MHz full band tuning in 50/100/200 kHz step sizes.
50/75s pre-emphasis.
High Performance FM Transmitter (FMT).
66dB Stereo SNR, 0.03% THD.
Maximum 121dBµV RF output level with 42dB adjustable range.
Integrated Clear Channel Scan.
RDS/RBDS Transmit.
Supports US and European data service, including TMC (Traffic Messaging Channel) (not available in QN8007L).
