RM3260T - high performance off-line PWM power switch

REACTOR

📥 Download Datasheet

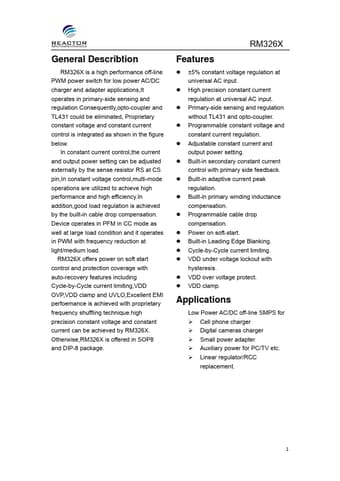

RM3260T Datasheet Preview — Preview of RM3260T PDF

Datasheet Details

Part number: RM3260T
Manufacturer: REACTOR
File Size: 377.96 KB
Datasheet: RM3260T-REACTOR.pdf
Description: high performance off-line PWM power switch

RM3260T Product details

Description

P Power Supply I Loop compensation for CV stability The voltage feedback from auxiliary winding, connected I to resistor divider from auxiliary winding reflecting output voltage,PWM duty cycle is determined by EA output and current sense signal at PIN 4. I Current sense input O HV.

Features

including Cycle-by-Cycle current limiting,VDD OVP,VDD clamp and UVLO,Excellent EMI perfoemance is achieved with proprietary frequency shuffling technique. high precision constant voltage and constant current can be achieved by RM326X. Otherwise,RM326X is offered in SOP8 and DIP-8 package. RM326X Features.
±5% constant voltage regulation at universal AC input.
High precision constant current regulation at universal AC input.
Primary-side sensing and regulation without TL431 and o.
