QBH-8909 Amplifier Performance Specifications

( DataSheet : www.DataSheet4U.com ) QBH-8909 Amplifier Performance Specifications Specifications Frequency (MHz) Gain (dB) Gain Flatness (dB) Noise Figure (dB) Power Out (dBm) 3rd Order Int (dBm) 2nd Order Int (dBm) Reverse Isolation (dB) Input VSWR Output VSWR DC Current (mA) DC Voltage (V) Gain vs. Vdc (dB/V) Typical +25 °C 5 - 200 22.0 ±0.7 +0.7 3.8 +24.0 +39.0 +48.0 +32.0 1.5:1 1.5:1 +230.0 +12.0 Min/Max -40 to +70 °C +0.9 / -0.9 Mechanical Outline Drawing Absolute Maximum Ratings Susta.

QBH-8909 Datasheet (100.22 KB)

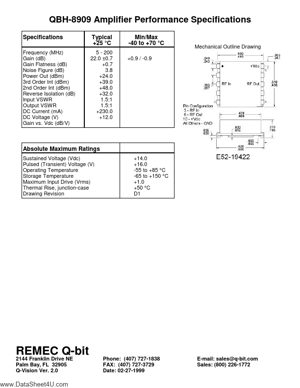

QBH-8909 Datasheet Preview — Preview of QBH-8909 PDF

Datasheet Details

Part number:

QBH-8909

Manufacturer:

REMEC

File Size:

100.22 KB

Description:

Amplifier performance specifications.
