QBH-8949 Amplifier Performance Specifications

( DataSheet : www.DataSheet4U.com ) QBH-8949 Amplifier Performance Specifications Specifications Frequency (MHz) Gain (dB) Gain Flatness (dB) Noise Figure (dB) Power Out (dBm) 3rd Order Int (dBm) 2nd Order Int (dBm) Reverse Isolation (dB) Input VSWR Output VSWR DC Current (mA) DC Voltage (V) Gain vs. Vdc (dB/V) Typical +25 °C 10 - 70 22.6 ±0.7 +0.7 3.5 +29.0 +45.0 +64.0 +50.0 1.5:1 1.5:1 +200.0 +12.0 Min/Max -40 to +70 °C Mechanical Outline Drawing +1.0 4.5 +26.0 +42.0 +43.0 1.5:1 1.5:1 +22.

QBH-8949 Datasheet (100.24 KB)

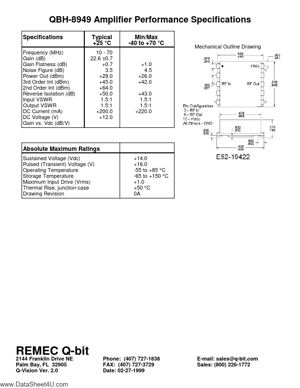

QBH-8949 Datasheet Preview — Preview of QBH-8949 PDF

Datasheet Details

Part number:

QBH-8949

Manufacturer:

REMEC

File Size:

100.24 KB

Description:

Amplifier performance specifications.
