DKFC2072 Datasheet - RF Micro Devices

2.7GHz RF SYNTHESIZER/VCO

DKFC2072 Features

* 85MHz to 2700MHz LO Frequency Range

* Fractional-N Synthesizer with Very Low Spurious Levels

* Typical Step Size 1.5Hz

* Fully Integrated Low Phase Noise VCO and LO Buffers

* Integrated Phase Noise 0.18°rms at 1GHz

* High Linearity RF Mixer(s)

* 30MHz to 2700MHz Mixer F

DKFC2072 General Description

The RFFC2071 and RFFC2072 are re-configurable frequency conversion devices with integrated fractional-N phased locked loop (PLL) synthesizer, voltage controlled oscillator (VCO) and either one or two high linearity mixers. The fractional-N synthesizer takes advantage of an advanced sigma-delta modul.

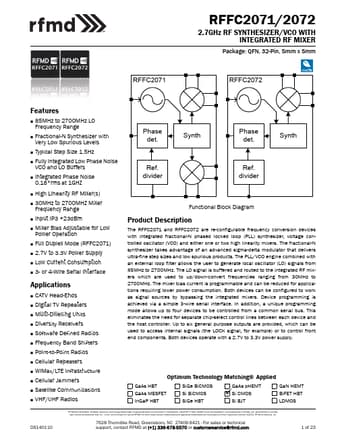

DKFC2072 Datasheet (1.40 MB)
