DKFC5062, DKFC5061 - WIDEBAND SYNTHESIZER/VCO

Name: DKFC5062
SKU: DKFC5062-976720

RF Micro Devices

📥 Download Datasheet

DKFC5062 Datasheet Preview — This datasheet PDF includes multiple part numbers: DKFC5062, DKFC5061. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DKFC5062, DKFC5061
Manufacturer	RF Micro Devices
File Size	2.72 MB
Description	WIDEBAND SYNTHESIZER/VCO
Datasheet	DKFC5061-RFMicroDevices.pdf
Note	This datasheet PDF includes multiple part numbers: DKFC5062, DKFC5061. Please refer to the document for exact specifications by model.

DKFC5062 Product details

Description

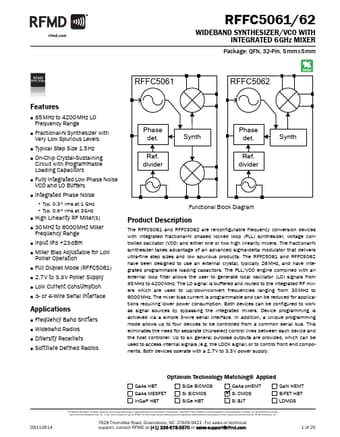

The RFFC5061 and RFFC5062 are re-configurable frequency conversion devices with integrated fractional-N phased locked loop (PLL) synthesizer, voltage controlled oscillator (VCO) and either one or two high linearity mixers.

Features

85MHz to 4200MHz LO Frequency Range.
Fractional-N Synthesizer with Very Low Spurious Levels.
Typical Step Size 1.5Hz.
On-Chip Crystal-Sustaining Circuit with Programmable Loading Capacitors.
Fully Integrated Low Phase Noise VCO and LO Buffers.
Integrated Phase Noise.
Typ. 0.3° rms at 1 GHz.
Typ. 0.8° rms at 3GHz.
High Linearity RF Mixer(s).
30MHz to 6000MHz Mixer Frequency Range.
Input IP3 +23dBm.
Mixer Bias Adjustable for Low.
