ML5805 - 5.8GHz Variable Data Rate FSK Transceiver

RF Micro Devices

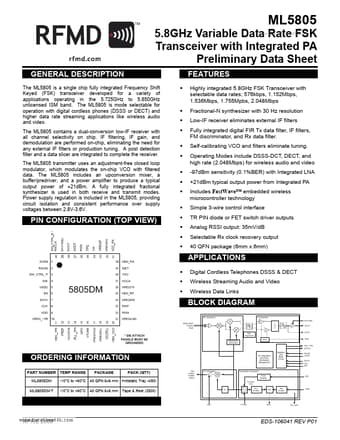

ML5805 Datasheet Preview — Preview of ML5805 PDF

Datasheet Details

Part number	ML5805
Manufacturer	RF Micro Devices
File Size	1.71 MB
Description	5.8GHz Variable Data Rate FSK Transceiver
Datasheet	ML5805_RFMicroDevices.pdf

ML5805 Product details

Description

The ML5805 is a single chip fully integrated Frequency Shift Keyed (FSK) transceiver developed for a variety of applications operating in the 5.725GHz to 5.850GHz unlicensed ISM band.

Features

Highly integrated 5.8GHz FSK Transceiver with selectable data rates; 576kbps, 1.152Mbps, 1.536Mbps, 1.755Mpbs, 2.048Mbps Fractional-N synthesizer with 30 Hz resolution Low-IF receiver eliminates external IF filters Fully integrated digital FIR Tx data filter, IF filters, FM discriminator, and Rx data filter. Self-calibrating VCO and filters eliminate tuning. Operating Modes include DSSS-DCT, DECT, and high rate (2.048Mbps) for wireless audio and video -97dBm sensitivity (0.1%BER) with Inte.
