ML501 - 1.9-2.7 GHz High IP3 Mixer

ML501 Description

www.DataSheet4U.com ML501 Product .
The ML501 high linearity upconverter or downconverter combines a passive GaAs MESFET mixer with an integrated HBT LO driver in a low-cost leadfree/gre.

ML501 Features

* High dynamic range mixer with integrated LO driver
* +30 dBm Input IP3
* 8 dB Conversion Loss
* RF: 1900
* 2700 MHz
* LO: 1600
* 2500 MHz
* IF: 50
* 500 MHz
* 0 dBm Drive Level
* RoHS-compliant SOIC-8 pkg The

ML501 Applications

* include frequency up/down conversion, modulation and demodulation for receivers and transmitters used in 2.5G and 3G GSM/CDMA/WCDMA systems in the PCS, or UMTS frequency bands. They can also be used for WiBro/WiLAN/WiMAX infrastructure requiring high linearity frequency conversion. Functional Diagr

📥 Download Datasheet

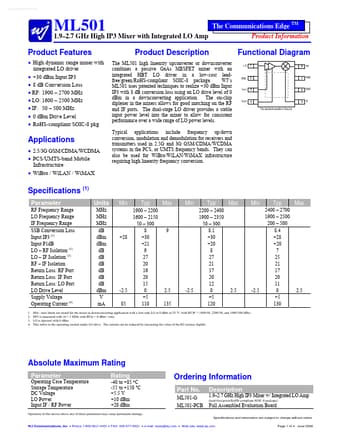

Preview of ML501 PDF
