NLB-300, CASCADABLE BROADBAND GaAs MMIC AMPLIFIER DC TO 10GHz

www.DataSheet4U.com NLB-300 0 Typical Applications * Narrow and Broadband Commercial and Military Radio Designs * Linear and Saturate.
The NLB-300 cascadable broadband InGaP/GaAs MMIC amplifier is a low-cost, high-performance solution for general purpose RF and microwave amplification.

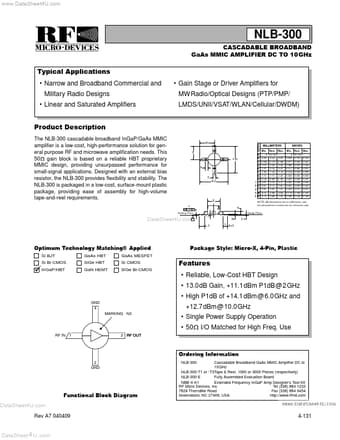

datasheet Preview Page 1 from Datasheet4u.com

NLB-300_RFMicroDevices.pdf

NLB-300 Datasheet Preview — Preview of NLB-300 PDF

Datasheet Details

Part number:

NLB-300

Manufacturer:

RF Micro Devices

File Size:

396.78 KB

Description:

CASCADABLE BROADBAND GaAs MMIC AMPLIFIER DC TO 10GHz

Features

* Reliable, Low-Cost HBT Design
* 13.0dB Gain, +11.1dBm P1dB@2GHz
* High P1dB of +14.1dBm@6.0GHz and GND 4 MARKING - N3 +12.7dBm@10.0GHz
* Single Power Supply Operation
* 50 Ω I/O Matched for High Freq. Use RF IN 1 3 RF OUT Ordering Information 2 GND Casc
