SDA-1000 - GaAs Distributed Amplifier

Product Overview

RF Micro Devices

Datasheet Details

Part number	SDA-1000
Manufacturer	RF Micro Devices
File Size	197.96 KB
Description	GaAs Distributed Amplifier
Datasheet	SDA-1000 Datasheet
Additional preview pages of the SDA-1000 datasheet.

Product details

Description

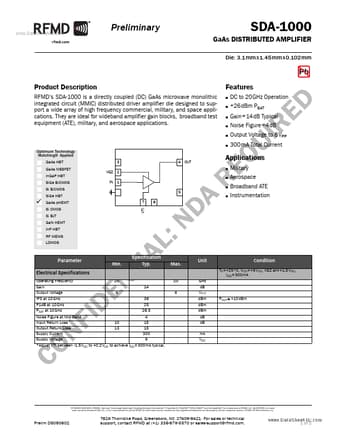

RFMD’s SDA-1000 is a directly coupled (DC) GaAs microwave monolithic integrated circuit (MMIC) distributed driver amplifier die designed to support a wide array of high frequency commercial, military, and space applications.

Features

Optimum Technology Matching® Applied GaAs HBT GaAs MESFET InGaP HBT SiGe BiCMOS Si BiCMOS SiGe HBT GaAs pHEMT Si CMOS Si BJT GaN HEMT InP HBT RF MEMS LDMOS 3 VG2 2 IN 1 4 OUT 5 7 6 9 Parameter ID EN TI AL :N DA Min. DC 4 Specification Typ. VTI Max. 20 8 Unit Electrical Specifications Operating Frequency Gain Output Voltage IP3 at 10GHz P1dB at 10GHz PSAT at 10GHz 14 36 GHz dB VP-P dBm 25 26.5 dBm dBm dB dB CO NF Noise Figure at Mid-Band 4 Input Return Loss 10 15 Output Return.
