Part number: SDA-3000
Manufacturer: RF Micro Devices
File Size: 1.10MB
Download: 📄 Datasheet

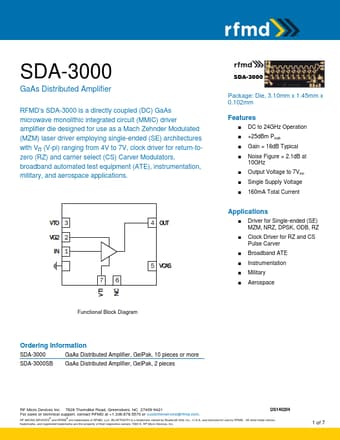

Description: GaAs Distributed Amplifier
* DC to 24GHz Operation
* +25dBm P3dB
* Gain = 16dB Typical
* Noise Figure = 2.1dB at
10GHz
* Output Voltage to 7VPP
* Single Supply Voltage
*.
SDA-3000
Package: Die, 3.10mm x 1.45mm x 0.102mm
Features
* DC to 24GHz Operation
* +25dBm P3dB
* Gain = 1.
Pin Name
Description
RF Input. This pad is DC coupled and matched to 50Ω from DC to
1
RFIN
24GHz. 50Ω microstrip transmission line on 0.127mm (5mil) thick alumina thin film substrate is recommended for RF input and
output.
VG2 is an optional.
