DR3102, Transceiver Module

Pin Name Description This pin is connected directly to the transceiver AGCCAP pin.

To disable AGC operation, this pin is tied to VCC.

To enable AGC operation, a capacitor is placed between this pin and ground.

This pin controls the AGC reset operation.

A capacitor between this pin and ground sets t

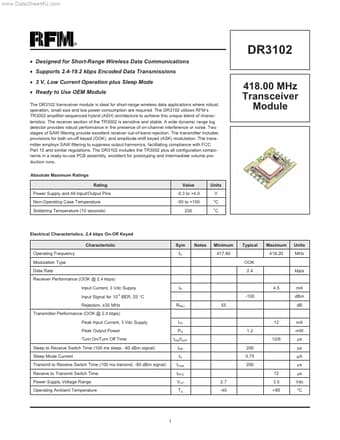

www.DataSheet4U.com ® Designed for Short-Range Wireless Data Communications Supports 2.4-19.2 kbps Encoded Data Transmissions 3 V, Low Current Operation plus Sleep Mode Ready to Use OEM Module The DR3102 transceiver module is ideal for short-range wireless data applications where robust operation, small size and low power consumption are required.

The DR3102 utilizes RFM’s TR3002 amplifier-sequenced hybrid (ASH) architecture to achieve this unique blend of characteristi

DR3102 Features

* adjus
