RF3604D Datasheet - RF Monolithics

SAW Filter

Preliminary 342.0 to 348.0 MHz Filter Optimized for use with the TRC105 Transceiver Balanced 150 ohm IC Interface Complies with Directive 2002/95/EC (RoHS) Pb RF3604D 345.0 MHz SAW Filter Value +15 ±5 -40 to +85 -40 to +85 Absolute Maximum Ratings Rating Input Power Level DC Voltage Operating Temperature Range Storage Temperature Range in Tape and Reel Units dBm V °C °C SM3838-8 Electrical Characteristics Characteristic Center Frequency 1 dB Bandwidth .

RF3604D Datasheet (633.46 KB)

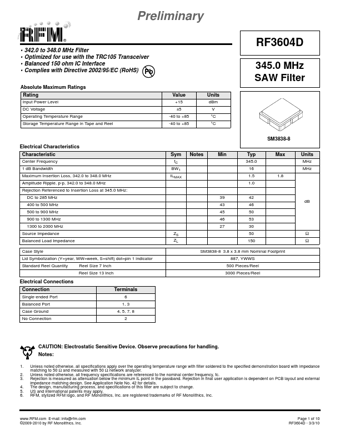

RF3604D Datasheet Preview — Preview of RF3604D PDF

Datasheet Details

Part number:

RF3604D

Manufacturer:

RF Monolithics

File Size:

633.46 KB

Description:

Saw filter.
