SF1140B-2 SAW Filter

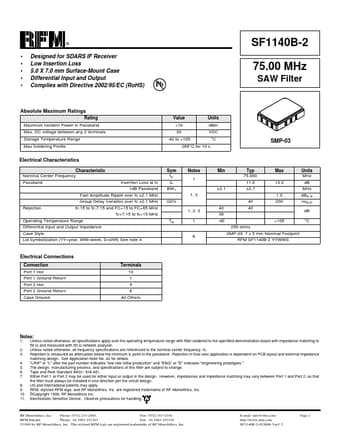

® SF1140B-2 75.00 MHz Pb Designed for SDARS IF Receiver Low Insertion Loss 5.0 X 7.0 mm Surface-Mount Case Differential Input and Output Complies with Directive 2002/95/EC (RoHS) SAW Filter Absolute Maximum Ratings Rating Maximum Incident Power in Passband Max. DC voltage between any 2 terminals Storage Temperature Range Max Soldering Profile Value +10 30 -40 to +105 265°C for 10 s Units dBm VDC °C SMP-03 Electrical Characteristics Charact.

SF1140B-2 Datasheet (131.16 KB)
