SF2183E Datasheet - RF Monolithics

SF2183E SAW Filter

SF2183E Surface Mount 3.0 x 3.0 mm Package Complies with Directive 2002/95/EC (RoHS) Absolute Maximum Ratings Rating Input Power Level DC Voltage on any Non-ground Terminal Operating Temperature Range Component Storage Temperature Range Storage Temperature Range in Tape and Reel Maximum Soldering Profile, 5 cycles/ 10 seconds maximum Pb Value 10 6 -40 to +85 -40 to +125 -40 to +85 265 Units dBm V °C °C °C °C 400.00 MHz SAW Filter SM3030-6 Electrical Characteristics Charac.

SF2183E_RFMonolithics.pdf

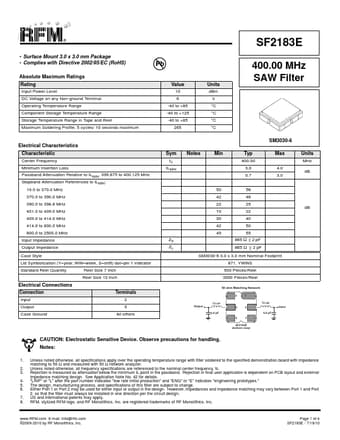

Preview of SF2183E PDF
SF2183E Datasheet Preview Page 2 SF2183E Datasheet Preview Page 3

Datasheet Details

Part number:

SF2183E

Manufacturer:

RF Monolithics

File Size:

520.35 KB

Description:

Saw filter.
