SF2185A Datasheet - RF Monolithics

SF2185A SAW Filter

Preliminary SF2185A Precision IF SAW Filter Hermetic 13.3 x 6.5 mm Surface-mount Case Complies with Directive 2002/95/EC (RoHS) Pb 70.00 MHz SAW Filter Absolute Maximum Ratings Rating Maximum Incident Power in Passband Maximum DC Voltage between any Two Terminals Storage Temperature Range in Tape and Reel Suitable for Lead-free Soldering - Maximum Soldering Profile Value +10 30 -40 to +85 Units dBm VDC °C 260 °C for 30 s SM13365-12 Electrical Characteristics.

SF2185A Datasheet (162.56 KB)

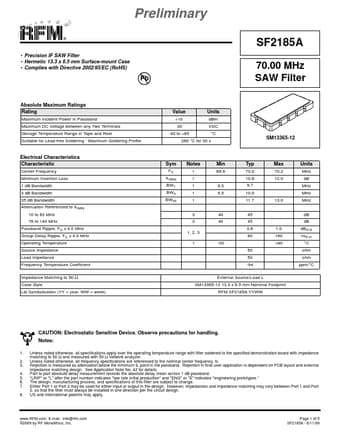

Preview of SF2185A PDF

Datasheet Details

Part number:

SF2185A

Manufacturer:

RF Monolithics

File Size:

162.56 KB

Description:

Saw filter.
