GS5K, GS5A Surface Mount General Purpose Rectifier

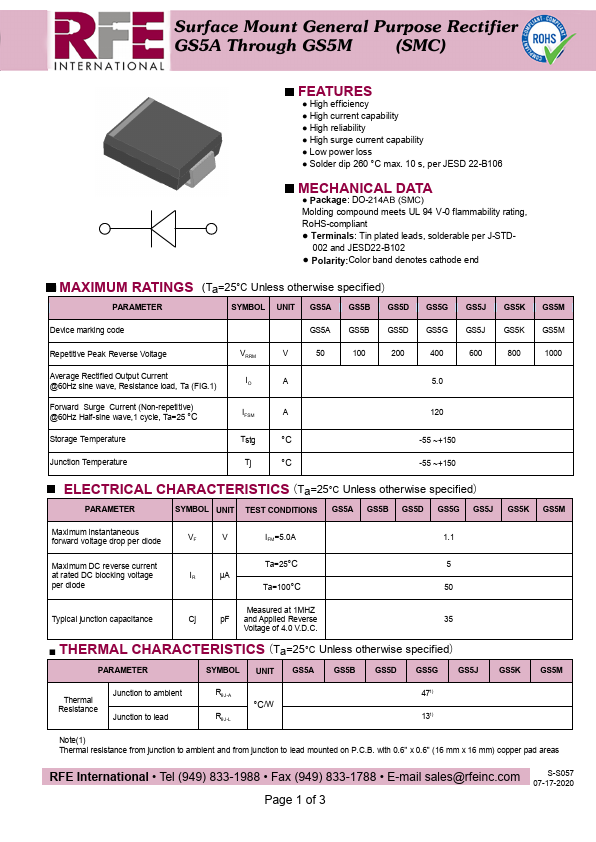

📥 Download Datasheet  Datasheet Preview Page 1

Description

Surface Mount General Purpose Rectifier GS5A Through GS5M (SMC) .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS5K, GS5A. Please refer to the document for exact specifications by model.

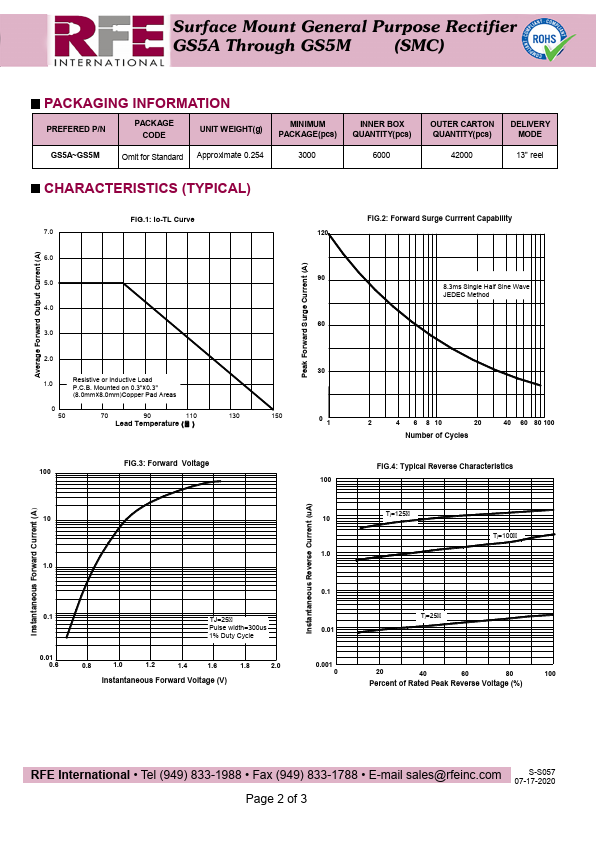

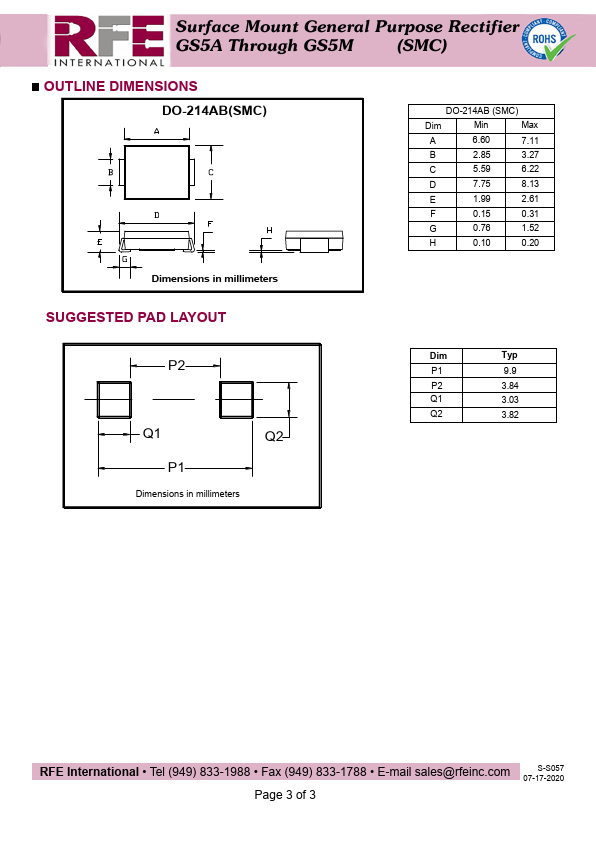

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GS5K, GS5A
Manufacturer
RFE
File Size
947.25 KB
Datasheet
GS5A-RFE.pdf
Description
Surface Mount General Purpose Rectifier
Note
This datasheet PDF includes multiple part numbers: GS5K, GS5A.
Please refer to the document for exact specifications by model.

Features

* High efficiency
* High current capability
* High reliability
* High surge current capability
* Low power loss
* Solder dip 260 °C max. 10 s, per JESD 22-B106 MECHANICAL DATA
* Package: DOMolding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminal
