SF2032E Datasheet - RFM

SF2032E SAW Filter

® SF2032E Pb SAW Filter for Digital Television Complies with Directive 2002/95/EC (RoHS) Characteristics : Balance to Balanced operation Terminating source impedance : Terminating load impedance : Maximum Rating Rating Input Power Level DC Voltage Operating Temperature Storage Temperature ZS = 200 Ω ZL = 200 Ω 1220 MHz SAW Filter Value 0 3 -30 ~ +85 -40 ~ +85 Units dBm V °C °C SM3030-8 Electrical Characteristics Characteristic Center Frequency Insertion Loss (1206~1.

SF2032E-RFM.pdf

Preview of SF2032E PDF

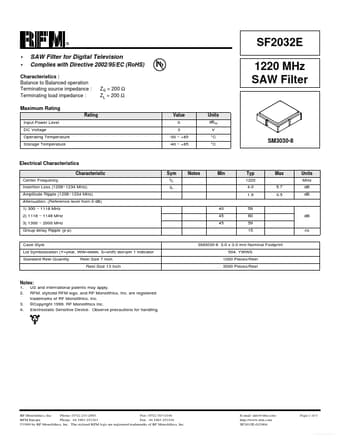

SF2032E Datasheet Preview Page 2 SF2032E Datasheet Preview Page 3

Datasheet Details

Part number:

SF2032E

Manufacturer:

RFM

File Size:

137.50 KB

Description:

Saw filter.
