SF2053E Datasheet - RFM

SF2053E SAW Filter

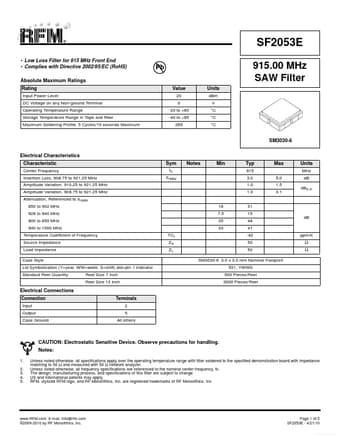

SF2053E Low Loss Filter for 915 MHz Front End Complies with Directive 2002/95/EC (RoHS) Absolute Maximum Ratings Rating Input Power Level DC Voltage on any Non-ground Terminal Operating Temperature Range Storage Temperature Range in Tape and Reel Maximum Soldering Profile, 5 Cycles/10 seconds Maximum Pb Value 20 0 -20 to +60 -40 to +85 265 915.00 MHz SAW Filter Units dBm V °C °C °C SM3030-6 Electrical Characteristics Characteristic Center Frequency Insertion Loss, 908.75 t.

SF2053E-RFM.pdf
