SF2050C, SF2060C - (SF2010C - SF2060C) Super Fast Rectifiers

Luguang Electronic Technology

📥 Download Datasheet

SF2050C Datasheet Preview — This datasheet PDF includes multiple part numbers: SF2050C, SF2060C. Please refer to the document for exact specifications by model.

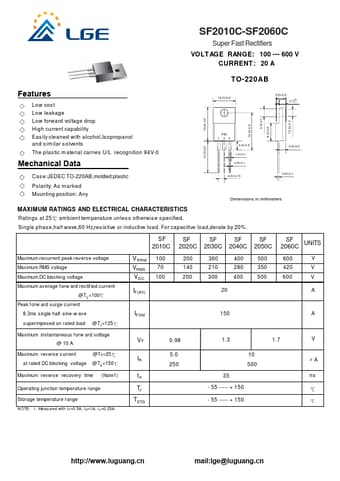

datasheet Preview Page 2

Datasheet Details

Part number	SF2050C, SF2060C
Manufacturer	Luguang Electronic Technology
File Size	232.14 KB
Description	(SF2010C - SF2060C) Super Fast Rectifiers
Datasheet	SF2060C_LuguangElectronicTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: SF2050C, SF2060C. Please refer to the document for exact specifications by model.

SF2050C Product details

Features

Low cos t Low leakage Low forward voltage drop High current capability Eas ily cleaned with alcohol,Is opropanol and s im ilar s olvents The plas tic m aterial carries U/L recognition 94V-0 15.0± 0.5 4.5± 0.2 10.2± 0.2 3.1+0.2 -0.1 3.3± 0.1 16.5± 0.3 1 13.5± 0.5 PIN 2 3 4.0± 0.3 1.4± 0.1 0.6± 0.1 8.2± 0.2 Mechanical Data Cas e:JEDEC TO-220AB,molded plastic Polarity: As marked Mounting position: Any 2.6± 0.15 0.6± 0.1 Dimensions in millimeters.
