SF2055A Datasheet - RF Monolithics

SF2055A SAW Filter

SF2055A Low-loss SAW Filter 11.5 X 4.0 mm Surface-Mount Case Complies with Directive 2002/95/EC (RoHS) Absolute Maximum Ratings Rating Input Power Level DC Voltage Operating Temperature Range Storage Temperature Range Pb Value 10 0 0 to +60 -40 to +85 Units dBm V °C °C 240.050 MHz SAW Filter SM1154-14 Electrical Characteristics Characteristic Center Frequency Insertion Loss at fO 3 dB Bandwidth In-band Ripple, fO ± 100 kHz Amplitude Variation, fO ±1 00 kHz Relat.

SF2055A Datasheet (305.32 KB)

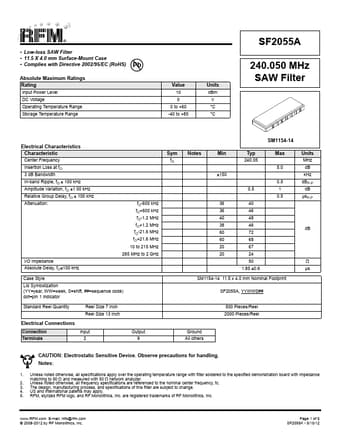

Preview of SF2055A PDF

Datasheet Details

Part number:

SF2055A

Manufacturer:

RF Monolithics

File Size:

305.32 KB

Description:

Saw filter.
