D10040220GTH GaAs POWER DOUBLER HYBRID

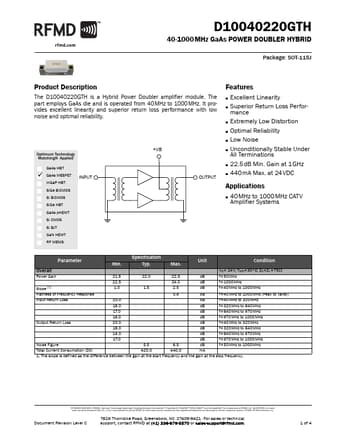

📥 Download Datasheet  Datasheet Preview Page 1

Description

D10040220G TH 401000 MHz GaAs Power Doubler Hybrid D10040220GTH 40-1000MHz GaAs POWER DOUBLER HYBRID Package: SOT-115J Product .
The D10040220GTH is a Hybrid Power Doubler amplifier module.

📥 Download Datasheet

Preview of D10040220GTH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
D10040220GTH
Manufacturer
RFMD
File Size
127.32 KB
Datasheet
D10040220GTH-RFMD.pdf
Description
GaAs POWER DOUBLER HYBRID

Features

* Excellent Linearity
* Superior Return Loss Perfor- mance
* Extremely Low Distortion
* Optimal Reliability
* Low Noise
* Unconditionally Stable Under All Terminations
* 22.5dB Min. Gain at 1GHz

Applications

* 40MHz to 1000MHz CATV Amplifier Systems Parameter Specification Min. Typ. Max. Unit Condition Overall VB= 24V; TMB=30°C; ZS=ZL=75Ω Power Gain 21.5 22.0 22.5 dB f = 50 MHz 22.5 24.0 dB f = 1000 MHz Slope [1] 1.0 1.5 2.5 dB f=40MHz to 1000MHz Flatness of Frequency R
