SGA0363Z Datasheet - RFMD

SILICON GERMANIUM CASCADABLE GAIN BLOCK

SGA0363Z Features

* DC to 5000MHz Operation

* Single Voltage Supply

* Low Current Draw: 11mA at 2.5V Typ.

* High Output Intercept: 14dBm Typ. at 1950MHz Applications

* PA Driver Amplifier

* Cellular, PCS, GSM, UMTS

* IF Amplifier

* Wireless Data, Satellite Parameter Specification Min

SGA0363Z General Description

The SGA0363Z is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring one-micron emitters provides high FT and excellent thermal perfomance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non.

SGA0363Z Datasheet (285.87 KB)

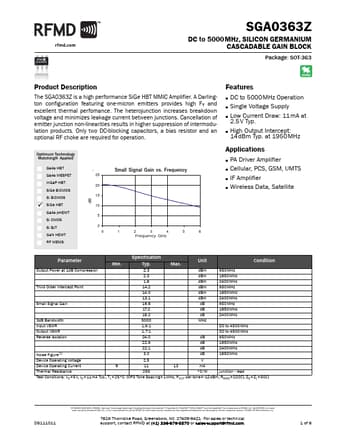

SGA0363Z Datasheet Preview — Preview of SGA0363Z PDF

Datasheet Details

Part number:

SGA0363Z

Manufacturer:

RFMD

File Size:

285.87 KB

Description:

Silicon germanium cascadable gain block.
SGA0363ZDC to 5000MHz, Silicon Germanium Cascadable Gain Block SGA0363Z DC to 5000MHz, SILICON GERMANIUM CASCADABLE GAIN BLOCK Package: SOT-363 Pr.
