APXVARR24-43-C-NA20 - Triple Band Antenna

APXVARR24-43-C-NA20 Description

PRODUCT DATASHEET APXVARR24_43-C-NA20 Dual Slant Polarized Triple Band (6 Port) Antenna, 584-746/1695-2200/16952200MHz, 65deg, 15.7/18.5/18.5dBi, 2.4m.

APXVARR24-43-C-NA20 Applications

* Field Replaceable (Integrated) AISG RET platform for reduced environmental exposure and long lasting quality. Superior elevation pattern performance across the entire electrical down tilt range. Includes three AISG RET motors - Includes 0.5m AISG jumper for optional diasy chain of two high band RET

📥 Download Datasheet

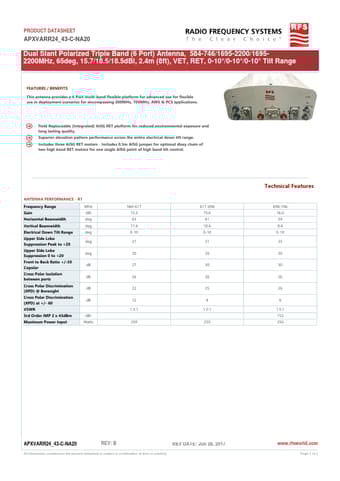

Preview of APXVARR24-43-C-NA20 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APXVARR24-43-C-NA20
Manufacturer
RFS
File Size
429.93 KB
Datasheet
APXVARR24-43-C-NA20-RFS.pdf
Description
Triple Band Antenna
