APXVFWW12X-C-NA20 Datasheet - RFS

APXVFWW12X-C-NA20 Triple Band Antenna

PRODUCT DATASHEET APXVFWW12X-C-NA20 RF X-TREMEĀŒCross Polarized Triple Band Antenna, 698-2360MHz, 65deg, 13.6/16.3/17.2dBi, 4ft, VET, RET The new RF X-TREME base station antenna design provides the highest gain and cross polar discrimination combined with the best vertical pattern control of any triple band antenna for its size. It is an ideal choice for site upgrades and new deployments where three frequency bands, or MIMO/4 RX diversity, is used to add capacity and increase coverage. Only 12 .

APXVFWW12X-C-NA20 Features

* superior pattern symmetry and a phase shifter for each radiating dipole providing exceptional patterns at all tilt settings. It is supplied with an integrated and field replaceable AISG 2.0 antenna control unit (ACU) for remote electrical tilt (RET) compatibility. FEATURE

APXVFWW12X-C-NA20 Datasheet (290.44 KB)

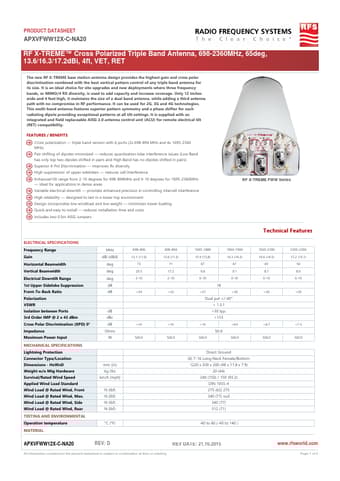

Preview of APXVFWW12X-C-NA20 PDF
APXVFWW12X-C-NA20 Datasheet Preview Page 2

Datasheet Details

Part number:

APXVFWW12X-C-NA20

Manufacturer:

RFS

File Size:

290.44 KB

Description:

Triple band antenna.
