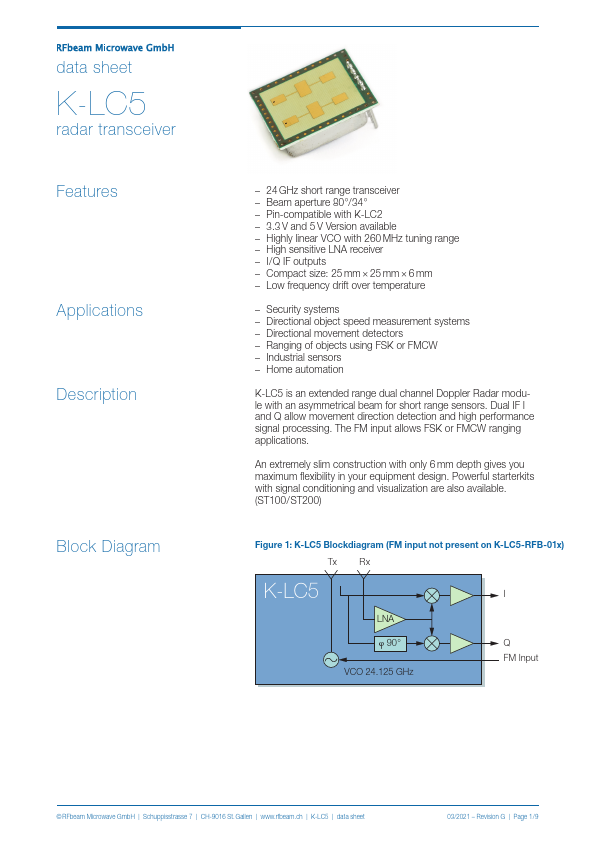

Preview of K-LC5 PDF
K-LC5 Datasheet Preview Page 2 K-LC5 Datasheet Preview Page 3

Datasheet Details

Part number:

K-LC5

Manufacturer:

RFbeam Microwave

File Size:

442.78 KB

Description:

Radar transceiver.

K-LC5, RADAR TRANSCEIVER

K-LC5 is an extended range dual channel Doppler Radar module with an asymmetrical beam for short distance sensors.

It is ideally suited for person movement sensors.

Dual IF I and Q allow movement direction detection and high performance signal processing.

FM input allows FSK ranging applications.

A

K-LC5 Features

* 24 GHz short range transceiver

* Beam aperture 80°/34°

* Pin-compatible with K-LC2

* 150 MHz typical sweep rate

* High sensitive LNA receiver

* More than double K-LC2 sensitivity

* I/Q IF outputs

* Low cost design

* Compact size: 25mm x 25mm x 6mm Datasheet Ap
