Datasheet Details
| Part number | K-LD7 |
|---|---|
| Manufacturer | RFbeam Microwave |
| File Size | 1.56 MB |
| Description | digital radar transceiver |
| Datasheet |
 K-LD7-RFbeamMicrowave.pdf
|
| Part number | K-LD7 |
|---|---|
| Manufacturer | RFbeam Microwave |
| File Size | 1.56 MB |
| Description | digital radar transceiver |
| Datasheet |
K-LD7-RFbeamMicrowave.pdf
|

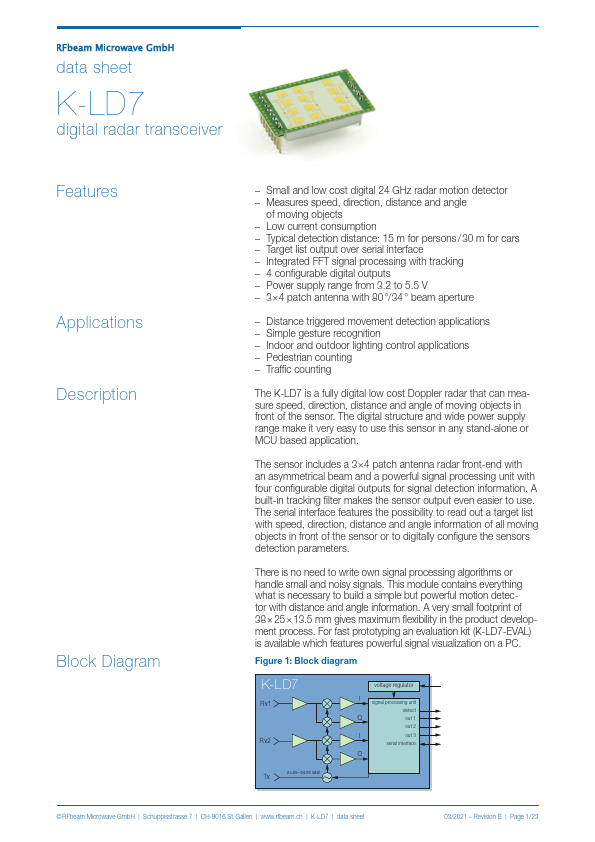

Block Diagram Small and low cost digital 24 GHz radar motion detector Measures speed, direction, distance and angle of moving objects Low current consumption Typical detection distance: 15 m for persons / 30 m for cars Target list output over serial interface Integrated FFT signal processing with tracking 4 configurable digital outputs Power supply range from 3.2 to 5.5 V 3 × 4 patch antenna with 80 °/ 3
