R1163D181B5, R1163x - 3-MODE 150mA LDO REGULATOR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: R1163D181B5, R1163x. Please refer to the document for exact specifications by model.

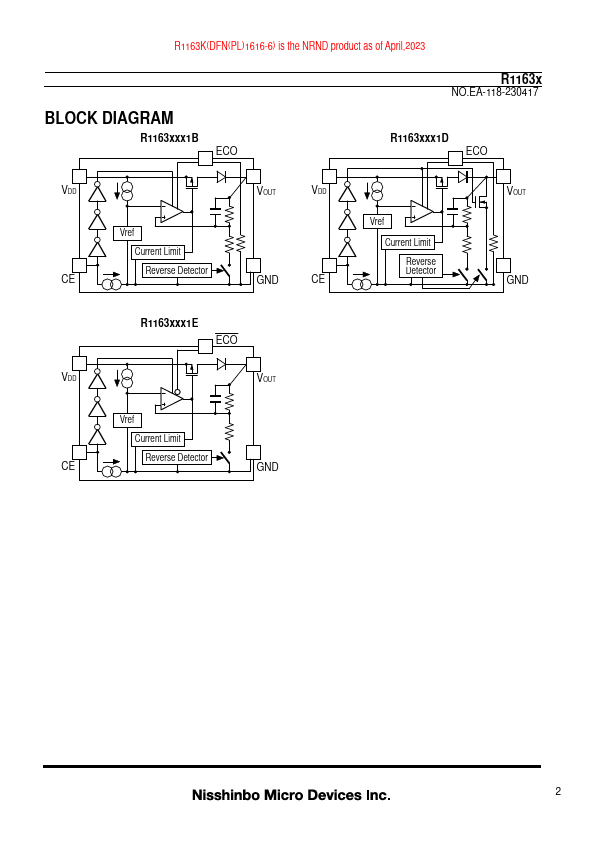

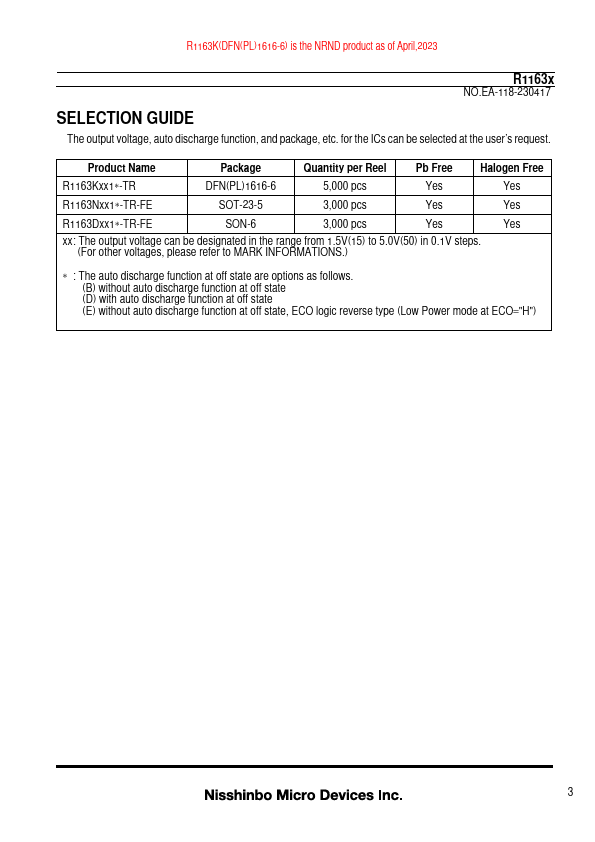

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number R1163D181B5, R1163x
Manufacturer RICOH
File Size 1.56 MB
Description 3-MODE 150mA LDO REGULATOR
Datasheet download datasheet R1163x_RICOHelectronics.pdf
Note This datasheet PDF includes multiple part numbers: R1163D181B5, R1163x.
Please refer to the document for exact specifications by model.

R1163D181B5 Product details

Description

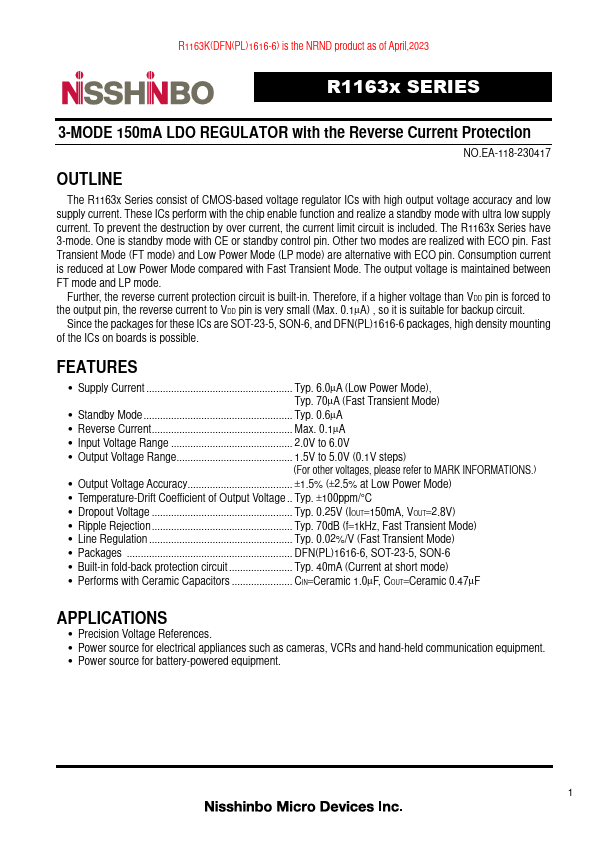

1 VOUT Output pin 2 GND Ground Pin ECO R1163xxx1B/D: FT/LP Mode Alternative Pin (“L” LP) 3 ECO R1163xxx1E: FT/LP Mode Alternative Pin (“H” LP) 4 CE Chip Enable pin ("H" Active) 5 NC No Connection 6 VDD Input Pin ∗) Tab is GND level.(They are connected to the reverse side of this IC.) The tab is better to be connected to the GND, but leaving it open is also acceptable. SOT-23-5 Pin No 1 2 3 4 5 SON-6 Symbol VDD GND CE ECO ECO VOUT Pin Description Inpu
