R1163D, R1163K - 3-MODE 150mA LDO REGULATOR

R1163D Description

R1163K(DFN(PL)1616-6) is the NRND product as of April,2023 R1163x SERIES 3-MODE 150mA LDO REGULATOR with the Reverse Current Protection NO.EA-118-2304.
1 VOUT Output pin 2 GND Ground Pin ECO R1163xxx1B/D: FT/LP Mode Alternative Pin (“L” LP) 3 ECO R1163xxx1E: FT/LP Mode Alternative Pin (“H”.

R1163D Features

* Supply Current Typ. 6.0µA (Low Power Mode), Typ. 70µA (Fast Transient Mode)
* Standby Mode Typ. 0.6µA
* Reverse Current Max. 0.1µA
* Input Voltage Range 2.0V to 6.0V
* Output Voltage Range 1.5V to 5.0V (0.1V steps) (For other voltages, please refer to MAR

R1163D Applications

* Precision Voltage References.
* Power source for electrical appliances such as cameras, VCRs and hand-held communication equipment.

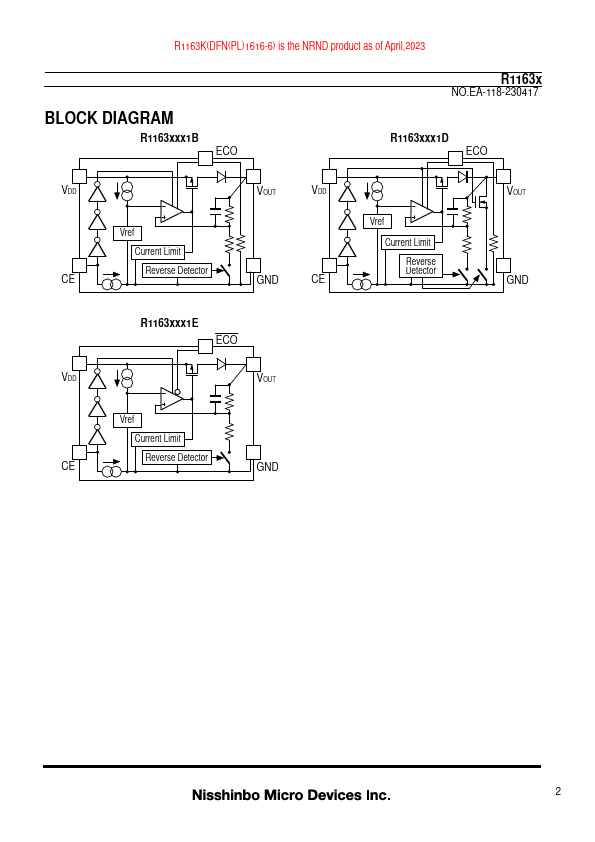

* Power source for battery-powered equipment. 1 R1163K(DFN(PL)1616-6) is the NRND product as of April,2023 BLOCK DIAGRAM R1163xxx1B ECO R11

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: R1163D, R1163K. Please refer to the document for exact specifications by model.

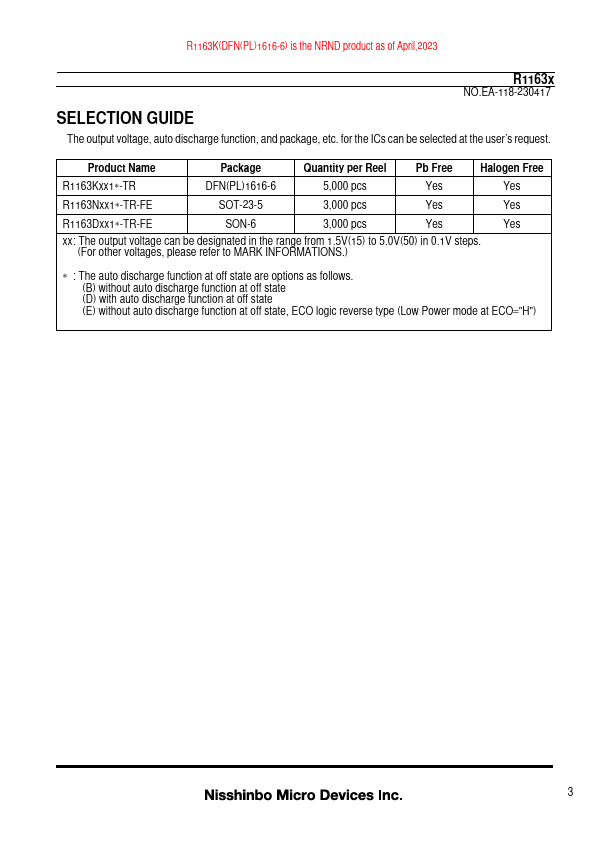

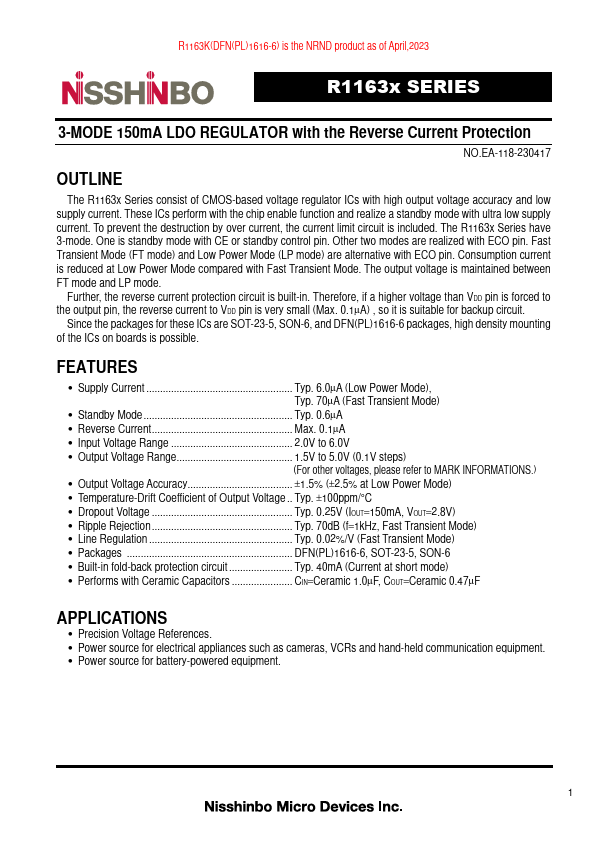

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
R1163D, R1163K
Manufacturer
Nisshinbo
File Size
1.54 MB
Datasheet
R1163K-Nisshinbo.pdf
Description
3-MODE 150mA LDO REGULATOR
Note
This datasheet PDF includes multiple part numbers: R1163D, R1163K.
Please refer to the document for exact specifications by model.
