R1163K281B - 3-MODE 150mA LDO REGULATOR

1 VOUT Output pin 2 GND Ground Pin ECO R1163xxx1B/D: FT/LP Mode Alternative Pin (“L” LP) 3 ECO R1163xxx1E: FT/LP Mode Alternative Pin (“H” LP) 4 CE Chip Enable pin ("H" Active) 5 NC No Connection 6 VDD Input Pin ∗) Tab is GND level.

(They are connected to the reverse side of thi

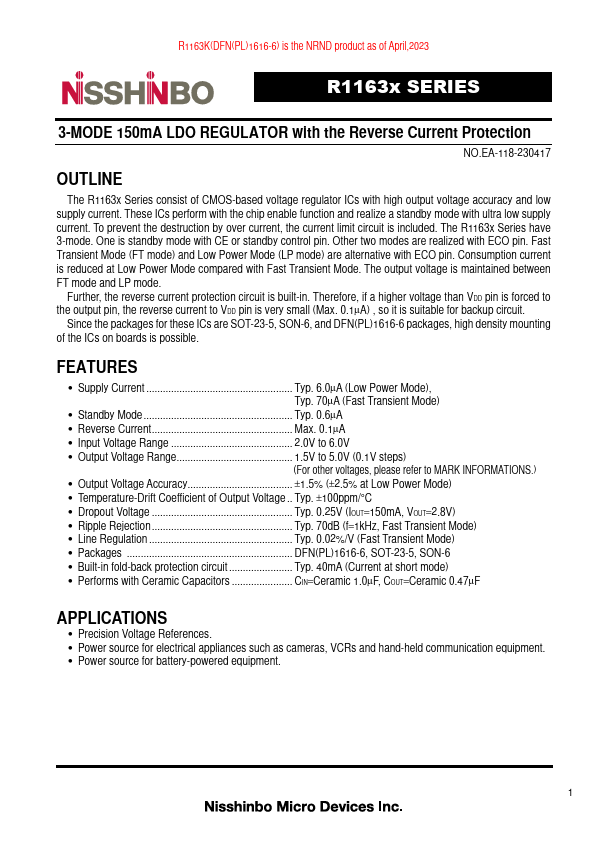

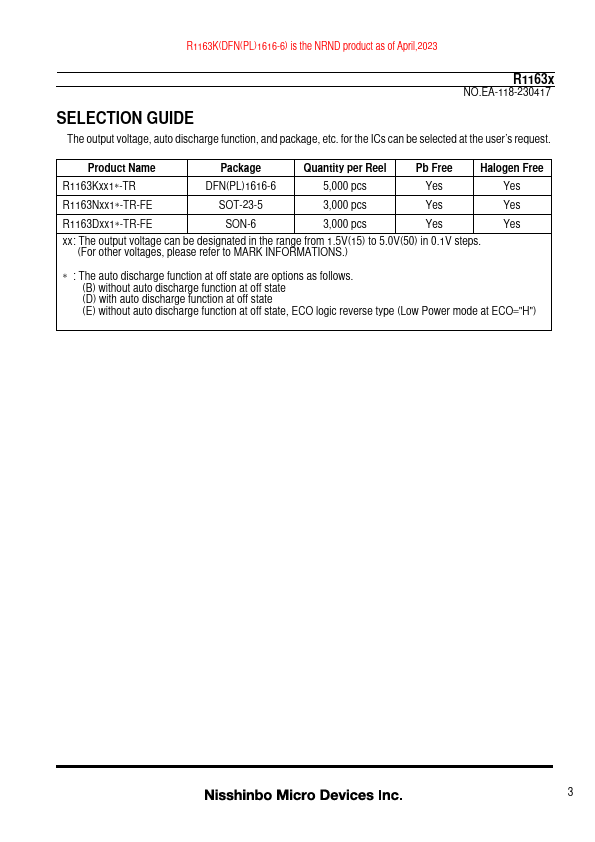

R1163K(DFN(PL)1616-6) is the NRND product as of April,2023 R1163x SERIES 3-MODE 150mA LDO REGULATOR with the Reverse Current Protection NO.EA-118-230417 OUTLINE The R1163x Series consist of CMOS-based voltage regulator ICs with high output voltage accuracy and low supply current.

These ICs perform with the chip enable function and realize a standby mode with ultra low supply current.

To prevent the destruction by over current, the current limit circuit is included.

The R1163x Series have 3-mode.

R1163K281B Features

* Supply Current Typ. 6.0µA (Low Power Mode), Typ. 70µA (Fast Transient Mode)

* Standby Mode Typ. 0.6µA

* Reverse Current Max. 0.1µA

* Input Voltage Range 2.0V to 6.0V

* Output Voltage Range 1.5V to 5.0V (0.1V steps) (For other voltages, please refer to MAR
