RP104K121D 150mA ULTRA LOW SUPPLY CURRENT LDO REGULATOR

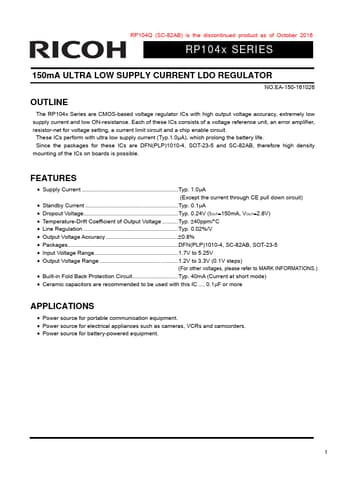

RP104Q (SC-82AB) is the discontinued product as of October 2016 RP104x SERIES 150mA ULTRA LOW SUPPLY CURRENT LDO REGULATOR NO.EA-150-161026 OUTLINE The RP104x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current and low ON-resistance. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a current limit circuit and a chip enable circuit. These ICs perform with ultra low supply current (.

RP104K121D Features

* Supply Current Typ. 1.0A (Except the current through CE pull down circuit)

* Standby Current Typ. 0.1A

* Dropout Voltage
