BU9798GUW, BU97930MUV Datasheet - ROHM Electronics

BU9798GUW Multifunction Segment Drivers

New released Multi-function type segment drivers support GPO function, LED driving function, static-driving mode, and Blink function that can blink each segment individually. ROHM Multi-function segment driver series contribute to reduction in cost of system and easy software development. *Feat.

BU9798GUW Features

* (BU97930MUV, BU97931FV, BU9798KV/GUW) 1) LCD drive output Common output : 4, Segment output : 27 (BU97930MUV) Common output : 4, Segment output : 28 (BU97931FV) Common output : 4, Segment output : 49 (BU9798KV/GUW) 2) Integrated Display data RAM (DDRAM) RAM: 28

* 4 =112 bit (BU97930MUV, BU97931FV)

BU97930MUV-ROHMElectronics.pdf

This datasheet PDF includes multiple part numbers: BU9798GUW, BU97930MUV. Please refer to the document for exact specifications by model.

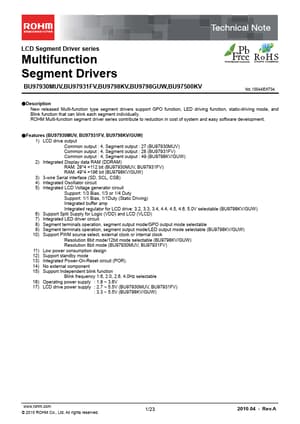

BU9798GUW Datasheet Preview Page 2 BU9798GUW Datasheet Preview Page 3

Datasheet Details

Part number:

BU9798GUW, BU97930MUV

Manufacturer:

ROHM ↗ Electronics

File Size:

492.40 KB

Description:

Multifunction segment drivers.

Note:

This datasheet PDF includes multiple part numbers: BU9798GUW, BU97930MUV.
Please refer to the document for exact specifications by model.
