Description

Datasheet Multi-function LCD Segment Drivers BU97981xxx Series MAX 196 Segments (SEG49xCOM4) .

📥 Download Datasheet

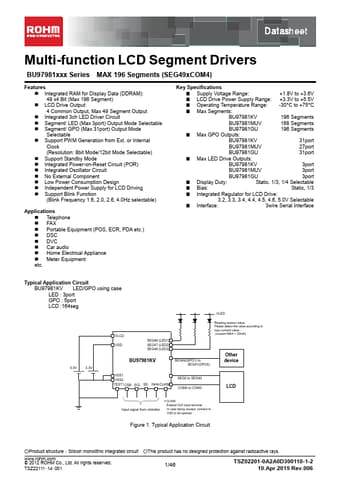

BU97981MUV-E2 Datasheet Preview — This datasheet PDF includes multiple part numbers: BU97981MUV-E2, BU97981KV. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BU97981MUV-E2, BU97981KV
Manufacturer: ROHM ↗
File Size: 1.51 MB
Datasheet: BU97981KV-ROHM.pdf
Description: Multi-function LCD Segment Drivers
Note: This datasheet PDF includes multiple part numbers: BU97981MUV-E2, BU97981KV.
Please refer to the document for exact specifications by model.

Features

* Integrated RAM for Display Data (DDRAM): 49 x4 Bit (Max 196 Segment)
* LCD Drive Output: 4 Common Output, Max 49 Segment Output
* Integrated 3ch LED Driver Circuit
* Segment/ LED (Max 3port) Output Mode Selectable
* Segment/ GPO (Max 31port) Output Mode Selectable
* Support

Applications

* Telephone
* FAX
* Portable Equipment (POS, ECR, PDA etc. )
* DSC
* DVC
* Car audio
* Home Electrical Appliance
* Meter Equipment etc. Key Specifications
* Supply Voltage Range: +1.8V to +3.6V
* L
