BD16922EFV-M - H-bridge Drivers

Product Overview

ROHM

Datasheet Details

Part number	BD16922EFV-M
Manufacturer	ROHM
File Size	896.60 KB
Description	H-bridge Drivers
Datasheet	BD16922EFV-M Datasheet

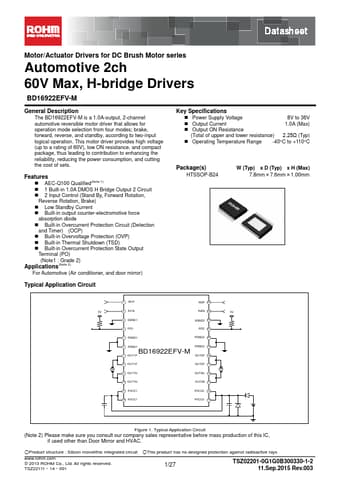

Additional preview pages of the BD16922EFV-M datasheet.

Product details

Description

The BD16922EFV-M is a 1.0A-output, 2-channel automotive reversible motor driver that allows for operation mode selection from four modes; brake, forward, reverse, and standby, according to two-input logical operation.

Features

AEC-Q100 Qualified(Note 1).
1 Built-in 1.0A DMOS H Bridge Output 2 Circuit.
2 Input Control (Stand By, Forward Rotation, Reverse Rotation, Brake).
Low Standby Current.
Built-in output counter-electromotive force absorption diode.
Built-in Overcurrent Protection Circuit (Detection and Timer) (OCP).
Built-in Overvoltage Protection (OVP).
Built-in Thermal Shutdown (TSD).
Built-in Ove.
