BD16952EFV-M - 2ch Half-Bridge Gate Driver

BD16952EFV-M Description

2ch Half-Bridge Gate Driver BD16952EFV-M General .
The BD16952EFV is an AEC-Q100 automotive qualified 2-channel Half-Bridge Gate Driver, controlled by an external MCU through a 16-bit Serial Peripheral.

BD16952EFV-M Features

* AEC-Q100 Qualified(Note1)
* 2ch Half-Bridge Gate Drivers
* 4 external MOSFETs are Controlled Independently
* Half-Bridge Control Modes are Selected by SPI
* Slew Rates are Controlled with Constant Source /Sink Current.
* 500 kHz Oscillation for Charge Pump.
* 16bit SPI

BD16952EFV-M Applications

* Power window Lifter, Sun Roof Module, Wiper, Seat Belt Tensioner, Seat Positioning etc. Typical Application Circuit VBAT VS CVS VP CCP1 Voltage Regulator CCP2 CVCC CP CPM CPP VCC DRAIN GH1 SH1 GH2 SI BD16952EFV SH2 SO GL1 SCLK GL2 μC CSB SL RSTB PWM1 SGND PWM2 PGND TGH1 VP

📥 Download Datasheet

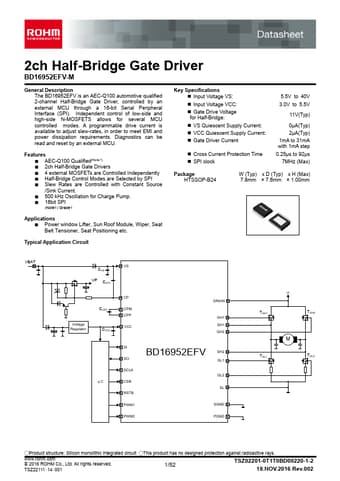

Preview of BD16952EFV-M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD16952EFV-M
Manufacturer
ROHM ↗
File Size
4.42 MB
Datasheet
BD16952EFV-M-ROHM.pdf
Description
2ch Half-Bridge Gate Driver
