BD433M2FP3-CE2 - LDO Regulators

This page provides the datasheet information for the BD433M2FP3-CE2, a member of the BD433M2WFP3-CE2 LDO Regulators family.

Datasheet Summary

Features

  • The BD4xxM2-C series are low quiescent regulators featuring 45 V absolute maximum voltage, and output voltage accuracy of ±2 % ( 3.3 V or 5.0 V: Typ. ), 200 mA output current and 40 μA (Typ. ) current consumption. These regulators are therefore ideal for.

📥 Download Datasheet

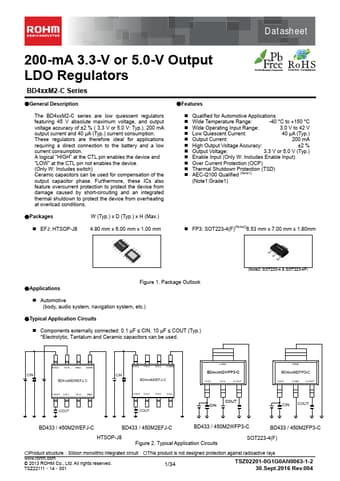

Datasheet preview – BD433M2FP3-CE2

Datasheet Details

Part number BD433M2FP3-CE2
Manufacturer ROHM
File Size 1.43 MB
Description LDO Regulators
Datasheet download datasheet BD433M2FP3-CE2 Datasheet
Additional preview pages of the BD433M2FP3-CE2 datasheet.

📁 Similar Datasheet

  • BD433 - COMPLEMENTARY SILICON POWER TRANSISTORS (STMicroelectronics)
  • BD433 - NPN Epitaxial Silicon Transistor (Fairchild Semiconductor)
  • BD433 - EPITAXIAL SILICON POWER TRANSISTORS (TRANSYS Electronics)
  • BD433 - Silicon NPN Power Transistors (Comset Semiconductors)
  • BD433 - Silicon NPN Power Transistors (Inchange Semiconductor)
  • BD433 - NPN Silicon Power Transistors (Micro Commercial Components)
  • BD433 - EPITAXIAL SILICON POWER TRANSISTORS (CDIL)
  • BD430 - PNP SILICON PLANAR TRANSISTOR (Siemens Semiconductor Group)
  • BD434 - PNP Epitaxial Silicon Transistor (Fairchild Semiconductor)
  • BD434 - COMPLEMENTARY SILICON POWER TRANSISTORS (STMicroelectronics)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
Datasheet 200-mA 3.3-V or 5.0-V Output LDO Regulators BD4xxM2-C Series ●General Description ●Features The BD4xxM2-C series are low quiescent regulators featuring 45 V absolute maximum voltage, and output voltage accuracy of ±2 % ( 3.3 V or 5.0 V: Typ.), 200 mA output current and 40 μA (Typ.) current consumption. These regulators are therefore ideal for applications requiring a direct connection to the battery and a low current consumption. A logical “HIGH” at the CTL pin enables the device and “LOW” at the CTL pin not enables the device. (Only W: Includes switch) Ceramic capacitors can be used for compensation of the output capacitor phase.
