Datasheet Details
- Part number
- BD433
- Manufacturer
- STMicroelectronics ↗
- File Size
- 45.21 KB
- Datasheet
- BD433_STMicroelectronics.pdf
- Description
- COMPLEMENTARY SILICON POWER TRANSISTORS
BD433 Description

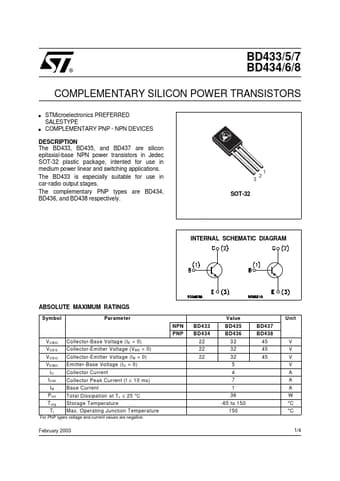

BD433/5/7 ® BD434/6/8 COMPLEMENTARY SILICON POWER TRANSISTORS s STMicroelectronics PREFERRED SALESTYPE s COMPLEMENTARY PNP - NPN DEVICES .
The BD433, BD435, and BD437 are silicon epitaxial-base NPN power transistors in Jedec SOT-32 plastic package, intented for use in medium power linear.
BD433 Applications
* The BD433 is especially suitable for use in car-radio output stages. The complementary PNP types are BD434, BD436, and BD438 respectively. 1 2 3
SOT-32
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
VCBO Collector-Base Voltage (IE = 0) VCES Collector-Emitter Voltage (VBE
