BD78310EFJ-M - Monaural Speaker Amplifier

This page provides the datasheet information for the BD78310EFJ-M, a member of the BD78306EFJ-M Monaural Speaker Amplifier family.

Datasheet Summary

Description

BD783xxEFJ-M Series are Class-AB monaural speaker amplifiers designed for automotive.

Class-AB amplifiers have no requirements for care about EMI noise.

Adopting power package HTSOP-J8 achieves high output power.

Features

  • AEC-Q100 Qualified(Note 1).
  • Pop Noise Reduction Function.
  • Shutdown Function.
  • Protection Functions - Over Current Protection - Thermal Shutdown - Under Voltage Lock Out (UVLO).
  • Power Package with Thermal Pad HTSOP-J8 (Note 1) Grade2.

📥 Download Datasheet

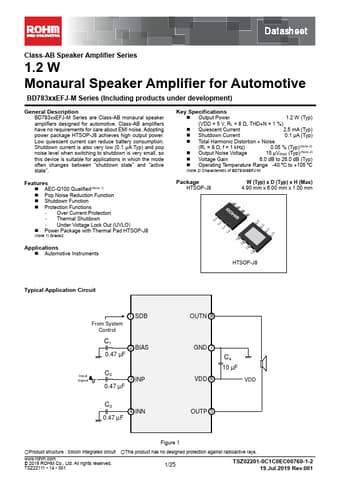

Datasheet preview – BD78310EFJ-M
