BD9486F LED Drivers

BD9486F Description

Datasheet LED Drivers for LCD Backlights 1ch Boost up type White LED Driver for large LCD BD9486F 1.1 General .
BD9486F is a high efficiency driver for white LEDs and is designed for large LCDs.

BD9486F Features

* DCDC converter with current mode
* VOUT discharge function at shutdown
* LED protection circuit (Over boost protection, LED OCP protection)
* Over-voltage protection (OVP) for the output voltage Vout
* Adjustable soft start
* Adjustable oscillation frequency of DCDC
* W

BD9486F Applications

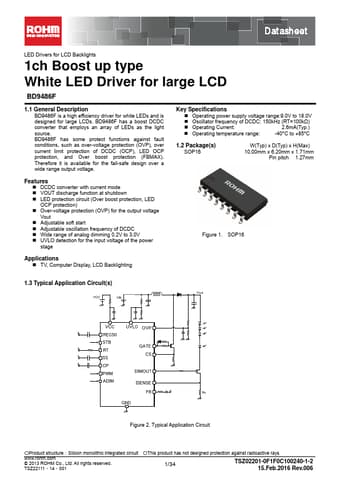

* TV, Computer Display, LCD Backlighting 1.3 Typical Application Circuit(s) Figure 2. Typical Application Circuit ○Product structure：Silicon monolithic integrated circuit . www. rohm. com © 2013 ROHM Co. , Ltd. All rights reserved. TSZ2211114001 ○This product has not designed protection against
