DTC114YUAFRA - Digital Transistor

ROHM

📥 Download Datasheet

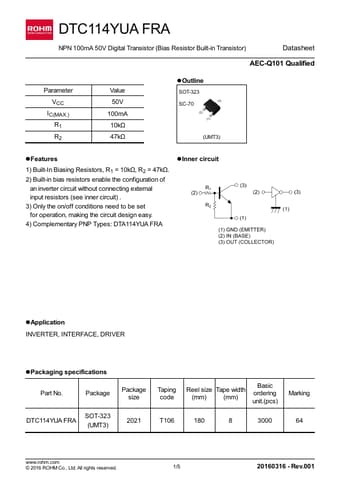

DTC114YUAFRA Datasheet Preview — Preview of DTC114YUAFRA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTC114YUAFRA
Manufacturer	ROHM ↗
File Size	1.01 MB
Description	Digital Transistor
Datasheet	DTC114YUAFRA-ROHM.pdf

DTC114YUAFRA Product details

Features

1) Built-In Biasing Resistors, R1 = 10kΩ, R2 = 47kΩ. 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary PNP Types: DTA114YUA FRA lOutline SOT-323 　 SC-70 　　　　　 (UMT3) 　　　　　　　　　　　　 lInner circuit l.
