DTC143XCA - Digital Transistor

Product Overview

ROHM

📥 Download Datasheet

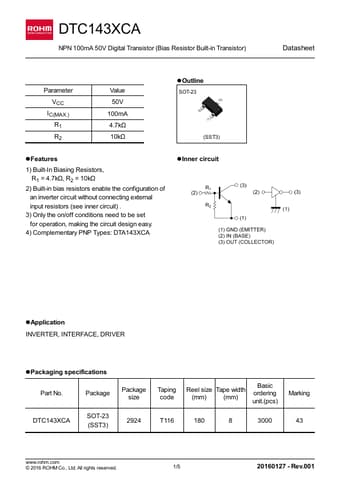

DTC143XCA Digital Transistor by ROHM - Datasheet Preview — Datasheet preview – DTC143XCA

Datasheet Details

Part number	DTC143XCA
Manufacturer	ROHM
File Size	742.40 KB
Description	Digital Transistor
Datasheet	DTC143XCA Datasheet
Additional preview pages of the DTC143XCA datasheet.

Product details

Features

1) Built-In Biasing Resistors, 　 R1 = 4.7kΩ, R2 = 10kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary PNP Types: DTA143XCA lOutline SOT-23 　　　　　　 (SST3) 　　　　　　　　　　　　 lInner circuit Datasheet l.
