DTC144EU3

NPN 100mA 50V Digital Transistors

DTC144EU3 Features

* 1) Built-In Biasing Resistors, R1 = R2 = 47kΩ 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Complementary PNP

DTC144EU3 Datasheet (2.98 MB)

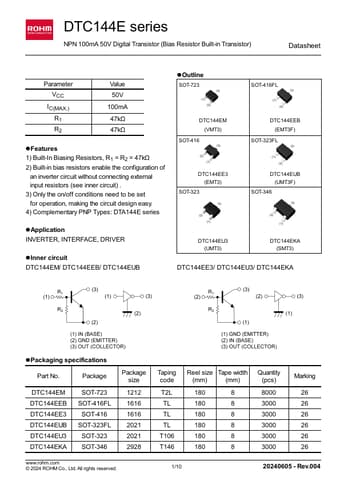

Preview of DTC144EU3 PDF

Datasheet Details

Part number:

DTC144EU3

Manufacturer:

ROHM ↗

File Size:

2.98 MB

Description:

Npn 100ma 50v digital transistors.
DTC144E series NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet Parameter VCC IC(MAX.) R1 R2 Value 50V 100mA 47kΩ 47k.
