* 1) Built-In Biasing Resistors, R1 = R2 = 47kΩ 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Complementary P
DTC144EU3HZG Datasheet (1.15 MB)
DTC144EU3HZG
1.15 MB
Npn 100ma 50v digital transistor.

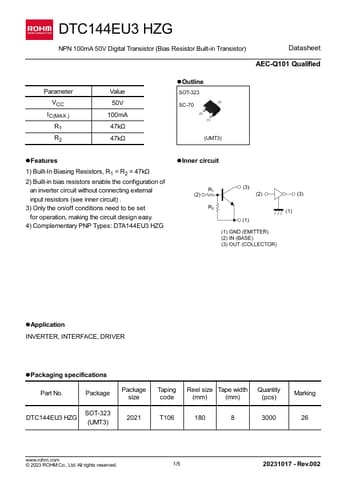

DTC144EU3 HZG
NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor)
Datasheet
AEC-Q101 Qualified
Parameter VCC
IC(MAX.) R1 R2
Valu.
