LB-602AK2 - Double Digits LED Numeric Display

ROHM

📥 Download Datasheet

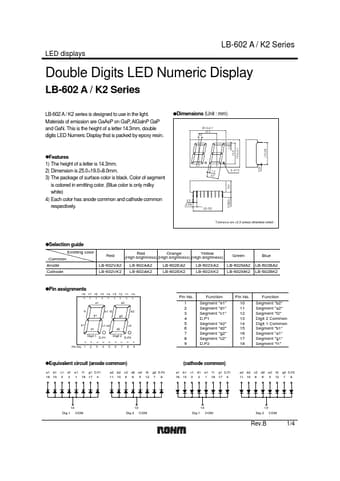

LB-602AK2 Datasheet Preview — Preview of LB-602AK2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: LB-602AK2
Manufacturer: ROHM ↗
File Size: 63.66 KB
Datasheet: LB-602AK2_ROHM.pdf
Description: Double Digits LED Numeric Display

LB-602AK2 Product details

Features

1) The height of a letter is 14.3mm. 2) Dimension is 25.0×19.0×8.0mm. 3) The package of surface color is black. Color of segment is colored in emitting color. (Blue color is only milky white) 4) Each color has anode common and cathode common respectively. 1.3 2.
φ1.5 8.0 8.0 3.5Min. 0.5 (2.54) (20.32) Tolerance are ±0.3 unless otherwise noted : zSelection guide Emitting color Common Anode Cathode Red Red Orange Yellow (High brightness) (High brightness) (High brightness) G.
