LB-602XA2, LB-602AK2 Datasheet - ROHM

LB-602XA2 Double Digits LED Numeric Display

LB-602XA2 Features

* 1) The height of a letter is 14.3mm. 2) Dimension is 25.0×19.0×8.0mm. 3) The package of surface color is black. Color of segment is colored in emitting color. (Blue color is only milky white) 4) Each color has anode common and cathode common respectively. 1.3 2

* φ1.5 8.0 8.0 3.5Min. 0.5

LB-602AK2_ROHM.pdf

This datasheet PDF includes multiple part numbers: LB-602XA2, LB-602AK2. Please refer to the document for exact specifications by model.

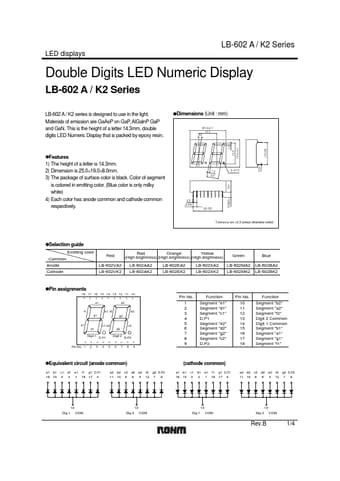

LB-602XA2 Datasheet Preview Page 2 LB-602XA2 Datasheet Preview Page 3

Datasheet Details

Part number:

LB-602XA2, LB-602AK2

Manufacturer:

ROHM ↗

File Size:

63.66 KB

Description:

Double digits led numeric display.

Note:

This datasheet PDF includes multiple part numbers: LB-602XA2, LB-602AK2.
Please refer to the document for exact specifications by model.
