R6004ENJ - Power MOSFET

Datasheet Summary

Features

  • 58W 　 　　　　　　 lInner circuit 1) Low on-resistance. 2) Fast switching speed. 3) Gate-source voltage (VGSS) guaranteed to 　　be ±20V. 4) Drive circuits can be simple. 5) Parallel use is easy. 6) Pb-free lead plating ; RoHS compliant lPackaging specifications Packing Embossed Tape Reel size (mm) 330 l.

📥 Download Datasheet

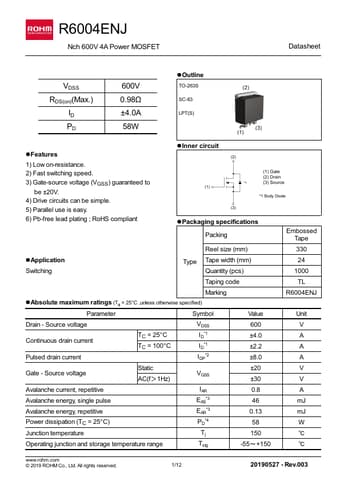

Datasheet preview – R6004ENJ

Datasheet Details

Part number R6004ENJ
Manufacturer ROHM
File Size 1.50 MB
Description Power MOSFET
Datasheet download datasheet R6004ENJ Datasheet
Additional preview pages of the R6004ENJ datasheet.

📁 Similar Datasheet

  • R6004ENJ - N-Channel MOSFET (INCHANGE)
  • R6004ENX - N-Channel MOSFET (INCHANGE)
  • R6004JND3 - N-Channel MOSFET (INCHANGE)
  • R6004JNJ - N-Channel MOSFET (INCHANGE)
  • R6004JNX - N-Channel MOSFET (INCHANGE)
  • R6004KNJ - N-Channel MOSFET (INCHANGE)
  • R6004KNX - N-Channel MOSFET (INCHANGE)
  • R600 - General Purpose Rectifier (Powerex Power Semiconductors)
  • R6000 - High Voltage Rectifiers (LGE)
  • R6000F - 0.2mA Fast Recovery High Voltage Rectifier (Micro Commercial Components)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
R6004ENJ 　　Nch 600V 4A Power MOSFET 　　 Datasheet lOutline VDSS 600V TO-263S 　 RDS(on)(Max.) 0.98Ω SC-83 ID ±4.0A LPT(S) PD lFeatures 58W 　 　　　　　　 lInner circuit 1) Low on-resistance. 2) Fast switching speed. 3) Gate-source voltage (VGSS) guaranteed to 　　be ±20V. 4) Drive circuits can be simple. 5) Parallel use is easy. 6) Pb-free lead plating ; RoHS compliant lPackaging specifications Packing Embossed Tape Reel size (mm) 330 lApplication Switching Type Tape width (mm) Quantity (pcs) 24 1000 Taping code TL Marking lAbsolute maximum ratings (Ta = 25°C ,unless otherwise specified) Parameter Symbol Value R6004ENJ Unit Drain - Source voltage Continuous drain current Pulsed drain current TC = 25°C TC = 100°C VDSS ID*1 ID*1 IDP*2 600 V ±4.0 A ±2.2 A ±8.
